Arc Radius & Drum Contact
Controlled lining radius supports even contact, bedding-in behaviour and stable braking force.
Drum Brake Shoes
Stable friction for passenger and commercial applications
Application-matched geometry, durable lining and controlled assembly for reliable aftermarket supply.
Brake Shoe Range
Designed around fit, bonding and durability
Our drum brake shoe process covers steel shoe preparation, friction lining manufacture, bonding or riveting, finishing, inspection and packaging.

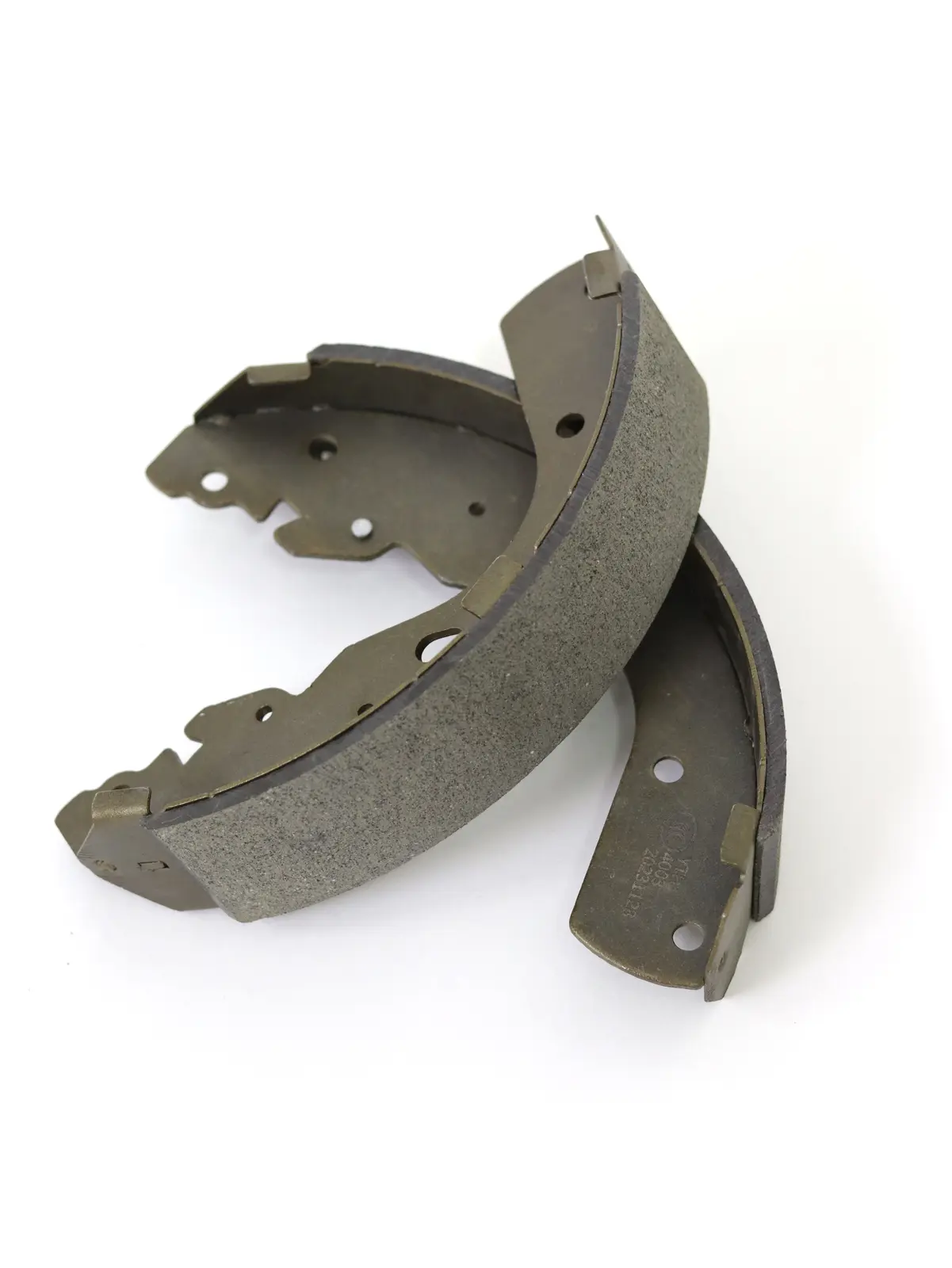

- Passenger and light commercial coverage
- Consistent shoe geometry
- Application-specific friction materials
- Bonded and riveted configurations
- Private-label packaging support
Brake Shoe Range
Product Gallery
Production-ready details for aftermarket and private-label supply.
Technical Product Details
Controlled geometry for reliable drum-brake operation
Brake shoe performance depends on lining formulation, shoe-table accuracy, attachment integrity and correct contact with the brake drum.

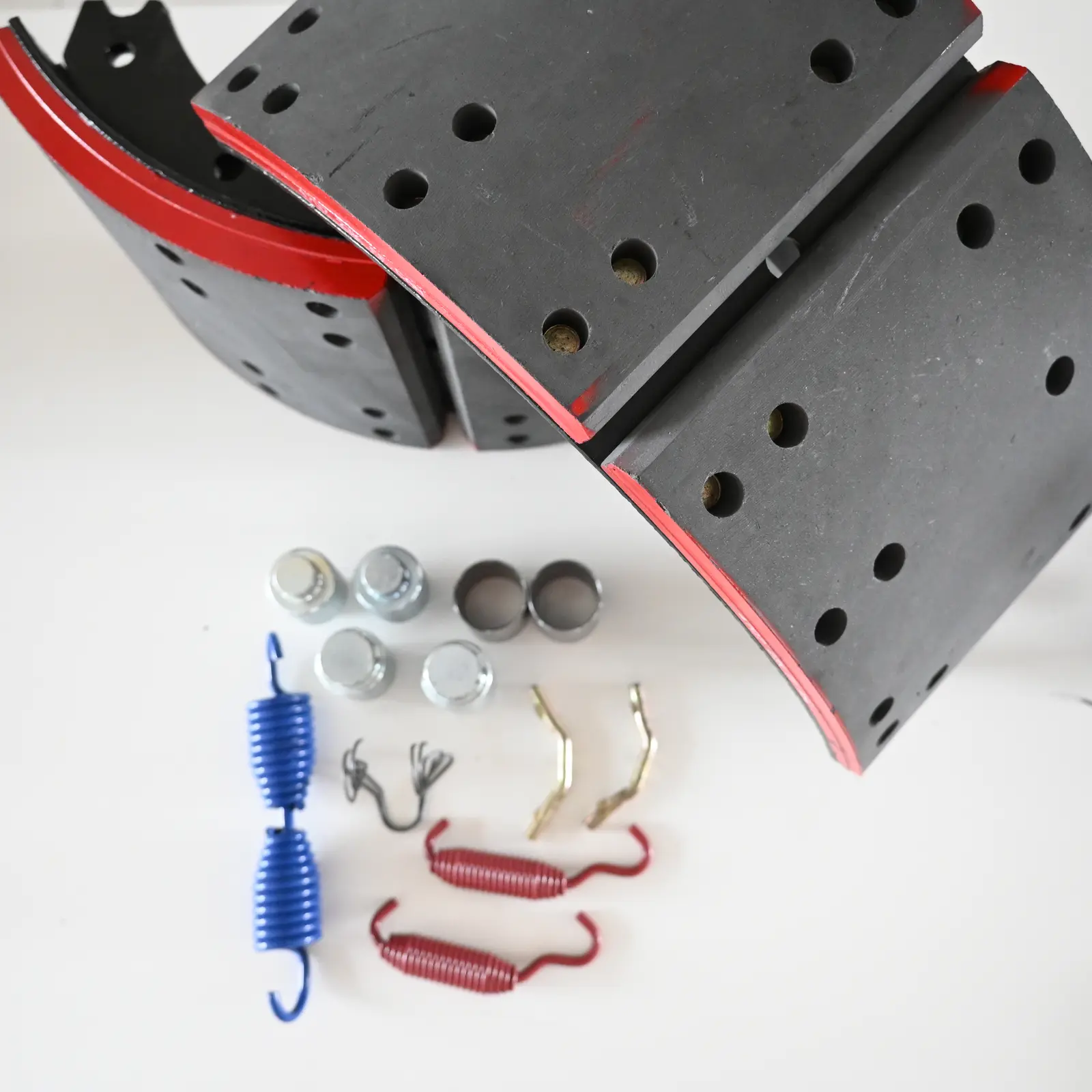

Bonded or Riveted Lining
Attachment method is selected by application, service duty and customer specification.
Friction Stability
Application-specific compounds balance response, wear resistance and temperature behaviour.
Shoe-Table Geometry
Web, table, anchor and end profiles are controlled for correct installation and mechanism movement.
Parking Brake Compatibility
Levers, holes and hardware interfaces can be matched for service and parking-brake functions.
Traceability & Inspection
Dimensional, appearance and attachment checks support consistent sets and export identification.
Controlled Process
From steel shoe to finished set
Steel Preparation
Forming, cleaning and surface treatment.
Lining Preparation
Material mixing, moulding and curing.
Assembly
Controlled bonding or riveting process.
Finishing
Grinding, coating and dimensional control.
Inspection
Appearance, fit and batch verification.
Packaging
Traceable labelling and export packing.
Need a Specific Reference?
Send OE, FMSI or WVA numbers.
We will check coverage, formula options and project requirements.
